The column with 8 bending
Integral type carriage
The bottom cover plate adopts diamond plate structure, and a guide groove is added under the bottom cover plate
Anti-dropping and anti-rotation structure of chain Heavy load plate chain, safe and reliable
The cable pulley 45# steelis processed and then heat treated
The safety lock is tightly engaged, and the design of unlocking shaft is foolproof
Double-channel sealed oil cylinder, 100% passed the pressure holding test
Butter nozzle design

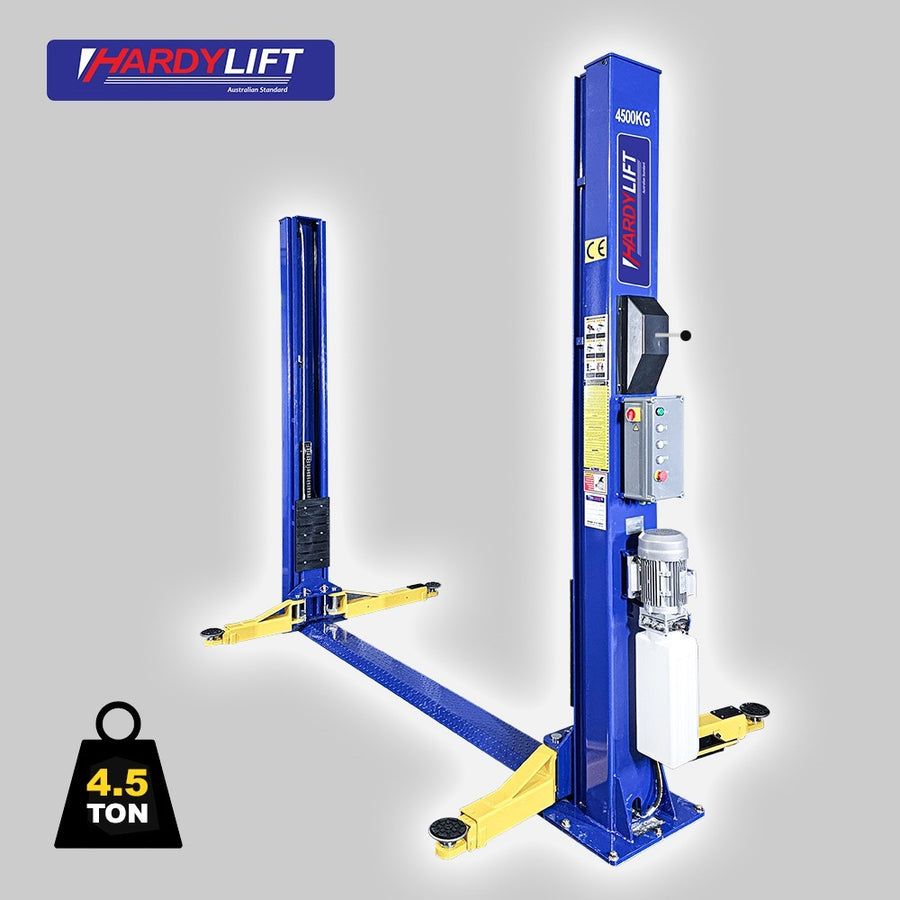

Model - HL201
Lifting Capacity - 4500kg
Max Lifting Height - 1820mm
Minimum Height - 100mm
Overall Height - 2860mm
Overall Width - 3410mm
Lifting Time - 50s
Motor Voltage - 380V/220V
Motor Power - 2.2KW
Package Size - 2880×470×740mm
